Knife Grinding Machine

Max. Grinding Length

2200mm

MAX Grinding width

180mm

Vertical Travel of Grinding Head

200mm

Feed control mode

PLC Encoder

Auto Feeding Depth of Grinding Head

0.01~0.08mm (mm)

Wheel size

Φ250×φ150×110(mm)

Travel Speed of Grinding Head

1-20m/min

coolant

Internal and external cooling/ Synthetic cutting fluid

Grinding speed

1400RPM

Grinding motor power

4.0kW,

Reciprocating Motor for Grinding Head

1.1kW

Cooling Motor Power

0.85KW

workbench

Copper wire coil electromagnetic chuck,

2200mm*180mm

Number of clamping tool

1-4 Tablets

Edge Straightness of Tool Blade

≤±0.02mm/m

Roughness of Blade Edge Ra

Ra≤0. 4mm

Grinding angle

±90°

Cooling water motor Power

0.125KW

Overall Size

3800×1250×1600(mm)

Weight

2200kg

Voltage

380V/50HZ/3PH

LIST

NO

Name

Brand

Specifications Model

Remark

1

Electrical equipment

Schneider

 Contactor、Circuit breaker、thermal relay

/

2

PLC

DELTA

1.5KW

/

3

Frequency converter

DELTA

1.5KW

/

4

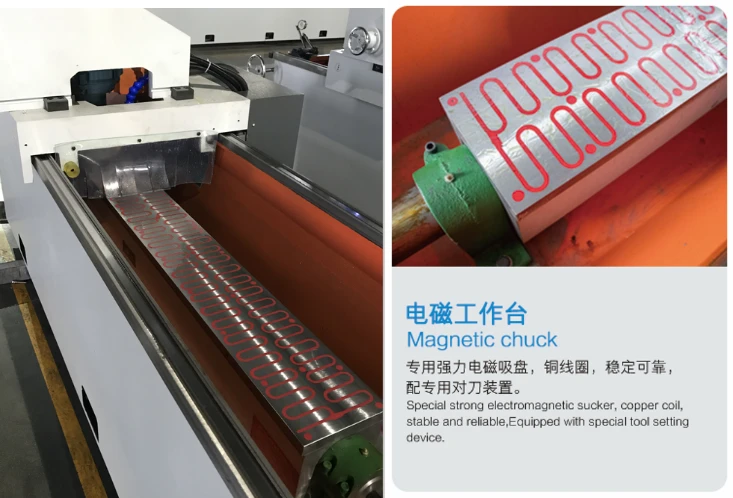

Magnetic chuck

JSBEST

Quality assurance for 2 years

copper coil

5

Grinding head motor

JSBEST

4.0KW

/

6

Walking motor and  Lifting motor

JSBEST

1.1 kW

/

7

Reduction drive

JSBEST

/

/

8

 Oil pump

HEGU

/

/

9

Grinding wheel

White corundum grinding wheel

Φ200×φ150×110（mm）

46K/60K

           /

10

The cooling water

ZXG-101

Corrosion resistant  1~20

/
