- The precise alignment of the cutting reams improves the quality considerably.
- Enables quality control.
- Increases the efficiency of the cutting machine by up to 40% because cutting can be continued while new material is prepared.Blocks can be formed more easily from the layers owing to mechanized removal of air.

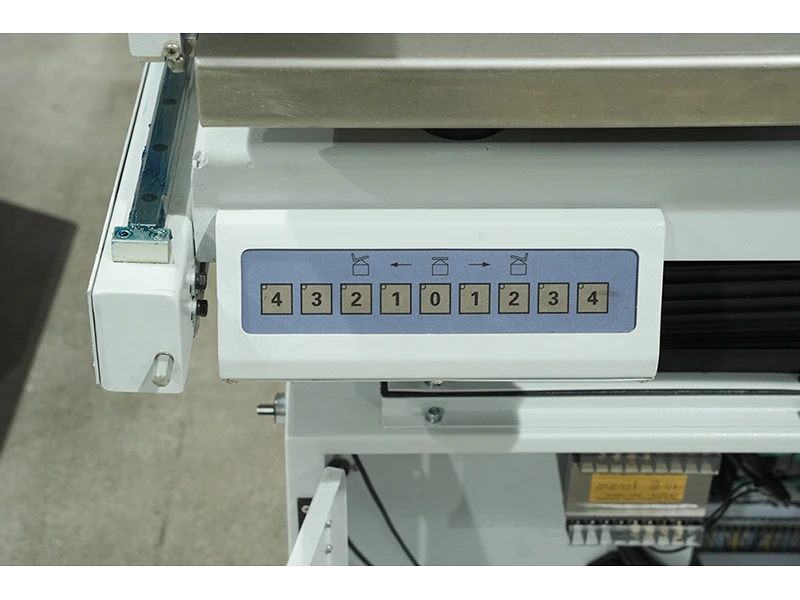

- Four automatic table inclination angles on the right/left side just need one touch.

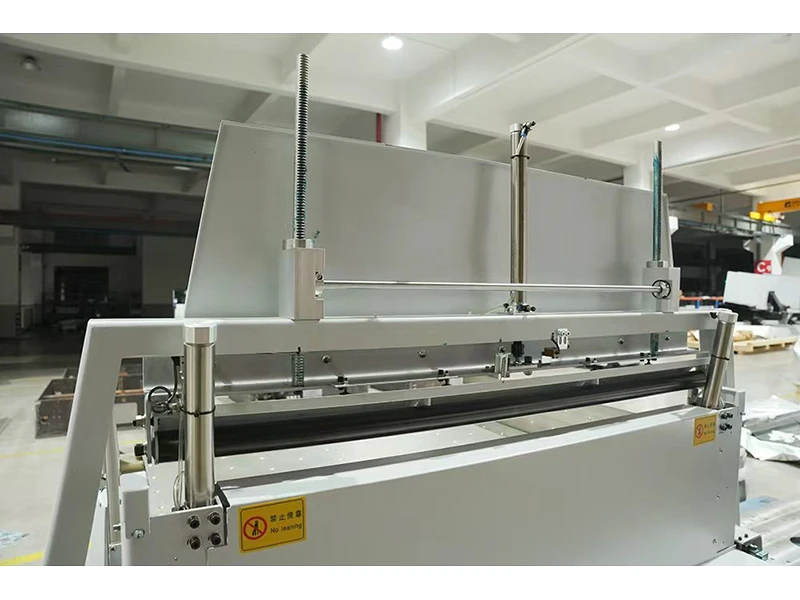

HPM66YS16 Paper Cutting Machine
1. The precise alignment of the cutting reams improves the quality considerably.
2. Enables quality control.
3. Increases the efficiency of the cutting machine by up to 40% because cutting can be continued while new material is prepared.Blocks can be formed more easily from the layers owing to mechanized removal of air.
4. Four automatic table inclination angles on the right/left side just need one touch.
2. Enables quality control.
3. Increases the efficiency of the cutting machine by up to 40% because cutting can be continued while new material is prepared.Blocks can be formed more easily from the layers owing to mechanized removal of air.
4. Four automatic table inclination angles on the right/left side just need one touch.
Machine Performance
Technical Parameter
|
Model |
CZ113 |
CZ116 |
|
Table Length [mm/in](Y) |
1150/45.28 |
1450/57.09 |
|
Table width [mm/in](X) |
900/35.43 |
1100/43.31 |
|
Width of machine [mm/in](B) |
1550/61.02 |
1850/72.83 |
|
Length of machine [mm/in](A) |
1290/50.79 |
1570/61.81 |
|
Height of machine [mm/in] |
1875/73.82 |
1875/73.82 |
|
Net weight [kg] |
600 |
850 |
|
Gross weight |
700 |
950 |
|
Package size (mm) |
1700*1460*2080 |
2070*1680*2080 |
|
Ream height min. [mm/in] |
30/1.18 |
30/1.18 |
|
Ream height max. [mm/in] |
165/6.5 |
165/6.5 |
|
Table height min. [mm/in] |
860/33.86 |
880/34.65 |
|
Table height max. [mm/in] |
950/37.40 |
980/38.58 |

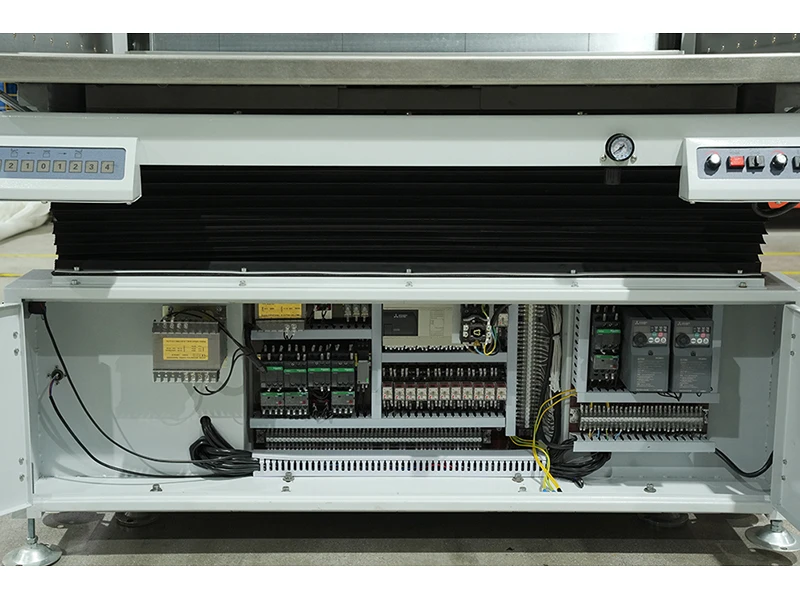

Configuration Listing
|
NO. |
Configuration |
Brand |
Origin |
|
1 |
Manual switch |
PUNA |
Taiwan |
|
2 |
Proximity switch |
panasonic |
Japan |
|
3 |
Limit swith |
panasonic |
Japan |
|
4 |
FREQUENCE CHANGER |
DELTA |
Taiwan |
|
5 |
BIMETAL RELAY |
Schneider |
French |
|
6 |
AIR BLOWER CONTROL |
Schneider |
French |
|
7 |
AIR BLOWER |
shenshen |
china |
|
8 |
RELAY |
Schneider |
French |
|
9 |
Ball screw |
TBI |
Taiwan |
|
10 |
Guide |
TBI |
Taiwan |
|
11 |
PLC |
DELTA |
Taiwan |
|
12 |
REDUCER |
LM |
Taiwan |
|
13 |
Power suppl |
MEAN WELL |
Taiwan |
|
14 |
Bear |
NSK |
Japan |
|
15 |
Cylinder |
Fonray |
China |
|
16 |
Floating joint |
Fonray |
China |
